Business Field
Electric Energy
ELECTRIC
Electric Energy
electric boiler
Electric Boiler
Room Temperature Control
The desired room temperature is automatically maintained to allow warm heating all the time.
Timer (Timer) Control
The heating cost can be reduced by heating at regular intervals.
Performance and Economics
- Artificial Intelligence Control by Self-diagnosis Function
- Apply the best polyurethane foam 2.5 times excellent in insulation performance
- Reduce the heating costs by using midnight electricity equivalent to 1/4 of the general electric rate
- Apply the best polyurethane foam 2.5 times excellent in insulation performance
- Reduce the heating costs by using midnight electricity equivalent to 1/4 of the general electric rate
Going-out
It can prevent freezing and bursting and reduce the heating costs.
Electric Boiler – Square (General)
| Model Name | DBA-100 | DBA-120 | DBA-150 | DBA-180 | DBA-200 | DBA-230 | DBA-250 | DBA-270 | |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 1000L | 1200L | 1500L | 1800L | 2000L | 2300L | 2500L | 2700L | |
| Heater Capacity | 11kW | 13kW | 17kW | 20kW | 22kW | 26kW | 28kW | 30kW | |
| Heating Area | High Insulation | 42㎡ | 52.9㎡ | 66.1㎡ | 79.3㎡ | 85.9㎡ | 99.2㎡ | 109.1㎡ | 119㎡ |
| Low Insulation | 23.1㎡ | 29.8㎡ | 36.4㎡ | 43㎡ | 46.3㎡ | 52.9㎡ | 59.5㎡ | 62.8㎡ | |
| Dimensions(WxLxH)mm | 700×1290×1360 | 700×1290×1760 | 700×1550×1890 | 700×1800×1890 | 750×1800×1890 | 1000×1550×1890 | 1000×1700×1890 | 1000×1850×1890 | |
Solar Collector
| Model Name | DBR-100 | DBR-120 | DBR-150 | DBR-180 | DBR-200 | DBR-230 | DBR-250 | DBR-270 | |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 1000L | 1200L | 1500L | 1800L | 2000L | 2300L | 2500L | 2700L | |
| Heater Capacity | 11kW | 13kW | 17kW | 20kW | 22kW | 26kW | 28kW | 30kW | |
| Heating Area | High Insulation | 42㎡ | 52.9㎡ | 66.1㎡ | 79.3㎡ | 85.9㎡ | 99.2㎡ | 109.1㎡ | 119㎡ |
| Low Insulation | 23.1㎡ | 29.8㎡ | 36.4㎡ | 43㎡ | 46.3㎡ | 52.9㎡ | 59.5㎡ | 62.8㎡ | |
| Dimensions(ø×H)mm | 1140×1460 | 1140×1680 | 1140×1990 | 1240×2010 | 1450×1670 | 1450×1830 | 1450×1970 | 1450×2120 | |
Large-capacity Instantaneous Electric Boiler Show the optimum performance anywhere -
Wall-mounted Instantaneous Electric Boiler
※The standard specifications for the heating area may vary depending on an installation location and environment.
| Item | Power Consumption | Heating Area | Calorie | Installation Type | Usage | Used Pipe | Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|
| kW/h | ㎡ | kcal/h | Wall-mounted / Stand | Combined / Exclusively | A | W×D×H(mm) | kg | |
| NSB-2008BH | 8 | 52.9 | 6,450 | Wall-mounted type | both heating and hot water | Heating 20 Hot water 20 Water supply 20 |
450 × 195 × 700 | 17 |
| NSB-2012BH | 12 | 79.3 | 10,320 | 19 | ||||
| NSB-2015BH | 15 | 99.1 | 12,900 | 19 | ||||
| NSB-2018BH | 18 | 119 | 15,480 | 21 | ||||
| NSB-2021BH | 21 | 138.8 | 18,060 | 21 | ||||
| NSB-2025BH | 25 | 165.3 | 21,500 | 21 |
※The standard specifications for the heating area may vary depending on an installation location and environment.
Wall-mounted Standing
※The standard specifications for the heating area may vary depending on an installation location and environment.
| Item | Power Consumption | Heating Area | heating/hot-water supply output | Amount of hot water stored | Installation Type | Installation method | Usage | Used Pipe | Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| kW/h | ㎡ | kcal/h | L | Wall-mounted/Stand | Bottom-up/Top-down | Combined/Exclusively | A | W×D×H(mm) | kg | |
| SB-1030B/H | 30 | 198.3 | 25,800 | 35 | Stand | Both bottom-up and top-down | For heating and hot water | Heating 32 Hot water 25 Water supply 15 |
799×520×1192 | 112 |
| SB-1030BH | 30 | 198.3 | 25,800 | 35 | Combined | 123 | ||||
| SB-1040B/H | 40 | 264.5 | 34,400 | 35 | For heating and hot water | 112 | ||||
| SB-1040BH | 40 | 264.5 | 34,400 | 35 | Combined | 123 | ||||
| SB-1050B/H | 50 | 330.6 | 43,000 | 55 | For heating and hot water | Heating 32 Hot water 50 Water supply 50 |
953×673×1373 | 190 | ||
| SB-1060B/H | 60 | 396.7 | 51,600 | 55 | For heating and hot water | |||||
| SB-1070B/H | 70 | 462.8 | 60,200 | 55 | For heating and hot water | |||||
| SB-1080B/H | 80 | 528.9 | 68,800 | 76 | For heating and hot water | 218 | ||||
| SB-1090B/H | 90 | 595.04 | 77,400 | 76 | For heating and hot water | |||||
| SB-1098B/H | 98 | 647.9 | 84,280 | 76 | For heating and hot water |
※The standard specifications for the heating area may vary depending on an installation location and environment.
water heater
Electric Water Heater,
The difference in the technology is the difference in fuel expenses!
The difference in the technology is the difference in fuel expenses!
Select a variety of products
Select 15/30/50/100L wall-mounted/stand type according to the amount of use and purpose
Automatic Thermostat
Easy to control hot water temperature Automatically shut off the power when hot water reaches the set temperature
Magnesium Anode Rod
The magnesium anode rod prevents corrosion by electrolysis and extends the product life.
Minimize heat loss
The high-density polyurethane foam minimizes heat and energy dispersion while curbing heat loss as much as possible.
Triple Safety Device
Apply a triple safety device including an automatic thermostat, an anti-overheating device, a safety valve, etc. to extend the lifespan of a water heater
Premium Enamel Coating
The premium enamel coating prevents corrosion and scale and uses hygienic hot water all the time.

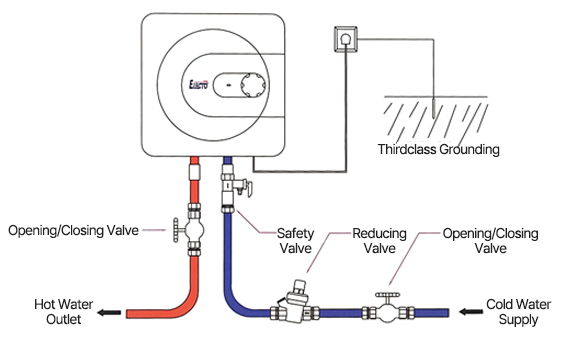

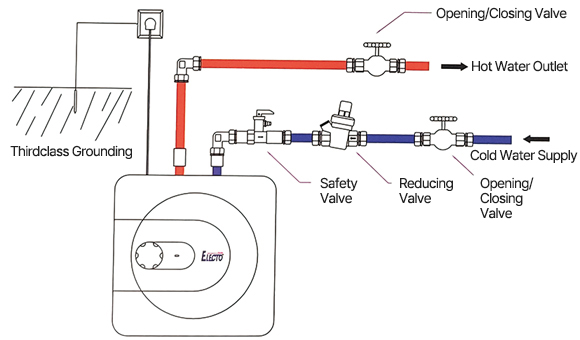

Schematic Diagram of Electric Water Heater
Wall-mounted Type
Stand Type
electric heating
Electric Heating,
Natural and Comfortable Heating System like Solar Heat
Natural and Comfortable Heating System like Solar Heat
The carbon fiber heating system which applies a solar radiation method is a far-infrared heating system which raises the body temperature and the room temperature through far-infrared wavelength.
Why is a carbon fiber heating element good?
-
01Far-infrared
EmissivityDischarge waste (sweat) from the body with the radiant heat of 90.6% far-infrared emissivity
As the far-infrared ray is invisible light which comes out the sun with the wavelength of 2~25㎛, its wavelength is so long that it penetrates the human body. -
02Far-infrared
Heating FiberThe use of far-infrared heating fiber can increase the temperature of body heat to improve immunity. -
03Far-infrared
Radiant HeatThe beneficial anion comes out with far-infrared radiant heat to produce an excellent deodorizing and antibacterial effect. -
04Clean Energy
ProductClean Energy Eco-friendly Product without the risk of burn/fire due to the use of high-efficiency carbon (charcoal) heating elements -
05Optimum Heating
EffectIt is designed in a structure which produces the optimal heating effect even with low power consumption, so it can be used without any concern about electric charges.

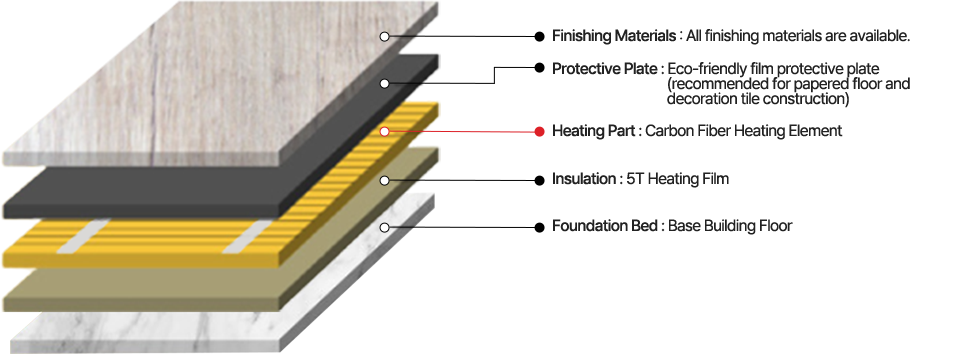

Floor Plan for Floor Heating Construction
Thickness : 8mm
Insulation 5mm+Heating Elements 0.8mm+Protective Plate 2.2mm
Insulation 5mm+Heating Elements 0.8mm+Protective Plate 2.2mm
